Ferrosilicon Production Process Guide

Ferrosilicon, denoted by the chemical shorthand FeSi, is a ferroalloy composed primarily of silicon and iron.

The silicon content typically ranges from 15% to 90% by weight, with the remainder being iron and trace amounts of other elements like aluminum, calcium, and carbon.

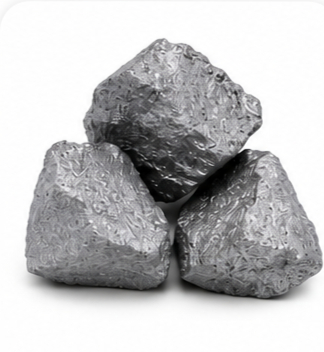

Its appearance is a silver-gray, brittle solid, often supplied in lump or granular form.

The true value of ferrosilicon lies not in its appearance but in its powerful chemical properties.

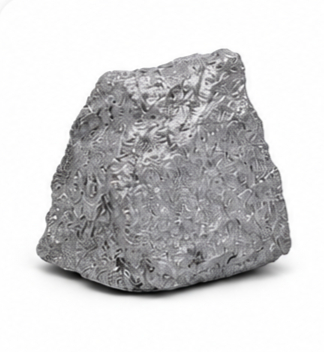

Silicon has a strong chemical affinity for oxygen, making ferrosilicon an excellent deoxidizing agent—it removes dissolved oxygen from molten metal, which is a critical step for preventing defects and improving the quality of steel.

Beyond deoxidation, it is used as:

🔥An alloying element to impart specific qualities to steel, such as improved strength and corrosion resistance.

🧱An inoculant in the production of cast iron to promote the formation of graphite.

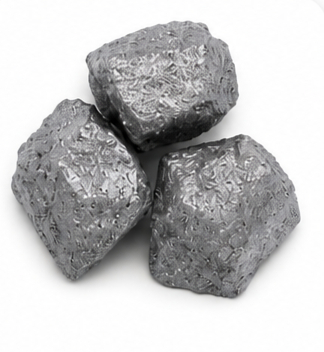

🏭A reducing agent in the production of other ferroalloys and in specialized chemical processes like the Pidgeon process for magnesium production.

The manufacturing of ferrosilicon is an energy-intensive process that takes place in a Submerged Arc Furnace (SAF).

The fundamental principle is the carbothermic reduction of silica.

2.Carbon Reductant: A mix of Coke, Coal, and Wood Chips. Carbon acts as the reducing agent, stripping oxygen from the silica.

3.Iron Source: Steel Scrap, Mill Scale, or Iron Ore. This provides the iron component of the alloy.

2.Smelting: Large carbon electrodes are lowered into the raw material mix. A powerful electric current passes through the electrodes, creating an electric arc that generates immense heat (temperatures exceeding 2000°C or 3632°F ).

3.Chemical Reaction: The primary chemical reaction is the reduction of silica by carbon to produce silicon:

SiO2​+2C→Si+2CO(gas)

4.Tapping: Once the reaction is complete, the furnace is tilted, and the molten ferrosilicon is “tapped” into large refractory-lined ladles. A layer of slag (impurities) floats on top and is separated.

5.Casting & Cooling: The molten alloy is poured into casting beds or molds where it cools and solidifies into large blocks.

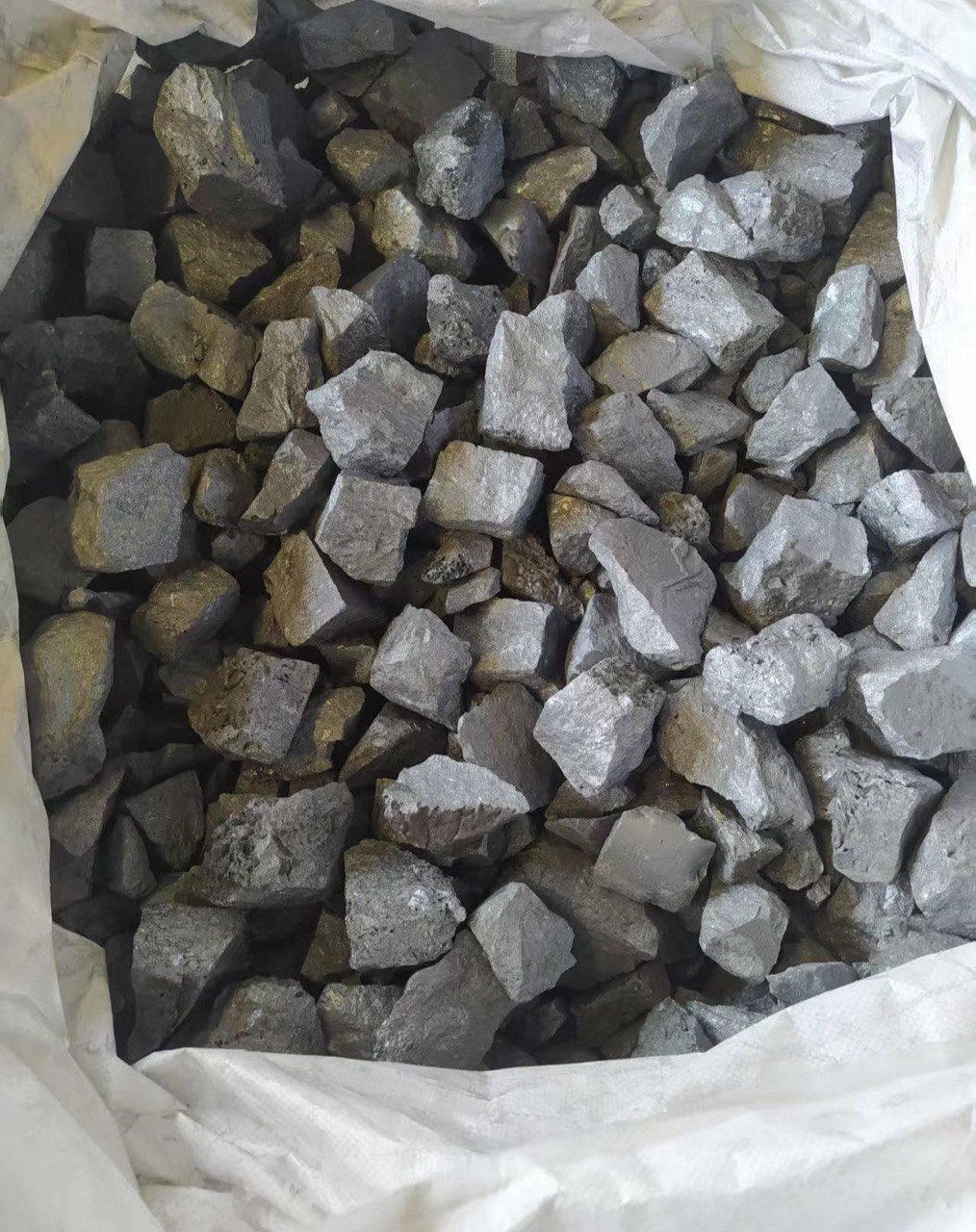

6.Crushing & Sizing: The solidified ferrosilicon is extremely brittle. It is crushed, milled, and screened into various standardized sizes according to customer requirements, from fine powders to large lumps.

The grade number typically indicates the nominal silicon percentage.

Note: The specific limits for impurities can be adjusted based on customer needs. Low-aluminum and low-calcium grades are available for specialized applications.

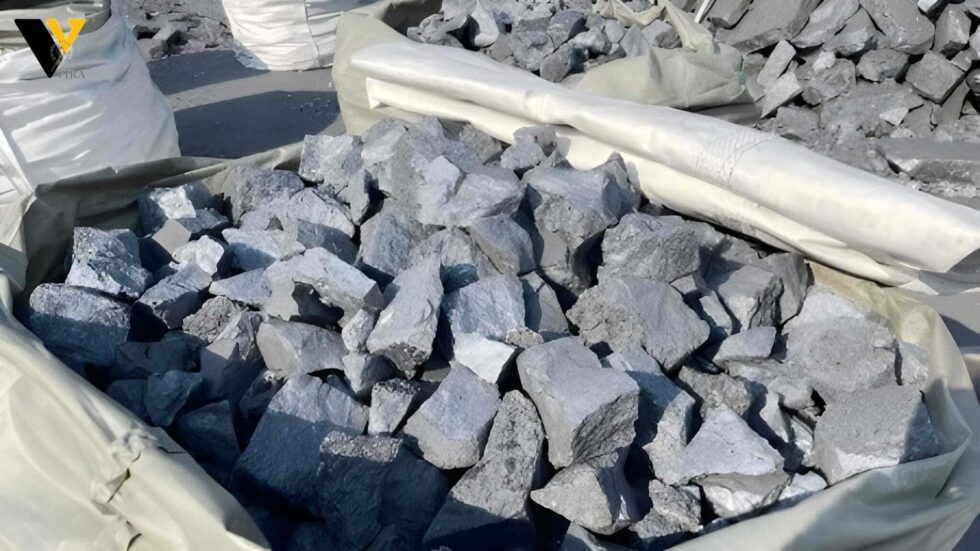

The versatility of ferrosilicon makes it indispensable across several heavy industries.

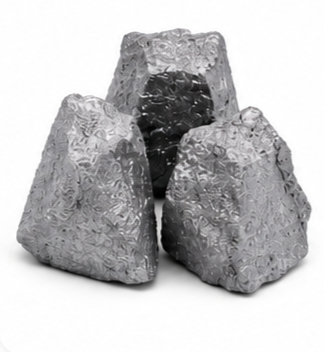

Adding ferrosilicon to the molten steel bath effectively removes this oxygen. The silicon reacts with dissolved oxygen to form silicon dioxid (SiO2​), which then floats into the slag layer and is removed.

2FeSi+O2​→2Fe+SiO2​

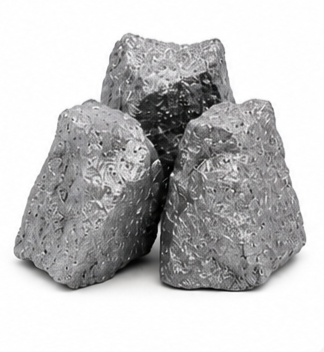

⚙️ Alloying Agent: Ferrosilicon is added to produce specific types of steel. Silicon steels, for instance, which contain 2-4% silicon, have unique magnetic properties (low core loss, high permeability) that make them essential for manufacturing electrical transformers, motors, and generators.

When added to molten iron just before casting, it promotes the formation of graphite nuclei.

This controls the structure and size of the graphite flakes or nodules, preventing the formation of brittle iron carbides and significantly improving the machinability and ductility of the final casting.

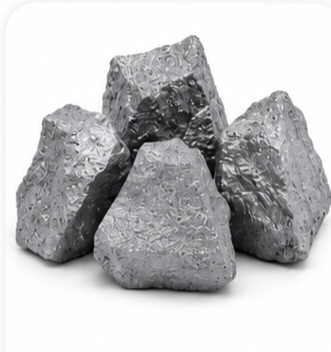

This is known as the Pidgeon Process.

2MgO⋅CaO+Si(fromFeSi)→2Mg(vapor)+Ca2​SiO4​+Fe

The magnesium is produced as a vapor, which is then condensed and collected.

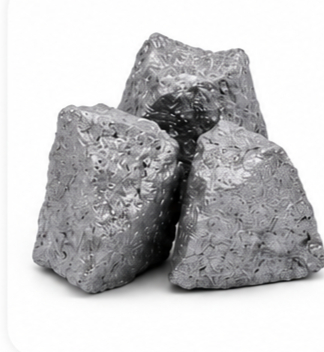

💡Welding Electrodes: Ferrosilicon is a component in the coating of some welding electrodes.

The global ferrosilicon market is dominated by a few key producing nations, with China being the largest by a significant margin.

Other major players include Russia, Norway, Brazil, and the United States.

The Middle East, and specifically Iran, has emerged as a significant and strategic producer of ferrosilicon. Companies like the Iran Ferrosilicon Co.

and other producers in the region leverage access to key raw materials and energy resources to supply both domestic and international markets. “Persian Ferrosilicon” has become recognized for its quality, and its strategic location allows it to serve growing markets in the Middle East, Europe, and Asia efficiently.

The development of this industry in Iran is a key part of the country’s broader strategy to diversify its economy and expand its metallurgical and mining sectors.

The primary use of ferrosilicon, accounting for the vast majority of its consumption, is as a deoxidizer in the production of steel.

It removes harmful dissolved oxygen from molten steel to improve its quality and prevent defects.

The main difference is the silicon content. FeSi 75 contains approximately 75% silicon, while FeSi 45 contains about 45%. FeSi 75 is more potent as a deoxidizer and is the standard grade for most steelmaking applications.

FeSi 45 is less expensive and used where a lower silicon concentration is sufficient.

In its solid, dry form, ferrosilicon is stable. The main hazards are associated with its dust, which can be a respiratory irritant, and its reaction with water or moisture, which can produce flammable gases.

It must be stored in a dry environment.

The price is influenced by several factors: the cost of electricity (its production is very energy-intensive), the price of raw materials (quartz, coke), global supply and demand dynamics, and production levels in major countries like China.

Prices are often quoted on commodity exchanges and through industry publications.

Iran has become a notable producer due to its strategic focus on developing its metallurgical industries, its access to necessary raw materials, and relatively competitive energy costs.

Iranian ferrosilicon (“Persian Ferro silicon”) serves its large domestic steel industry and is also exported, making it an important player in the regional and global markets.

Ferrosilicon is a classic example of an industrial material that, while not a household name, is utterly indispensable to our modern world.

Its journey from quartz rock and iron scrap in the searing heat of a submerged arc furnace to its role in refining the very steel that builds our cities and the cast iron in our machines is a testament to the power of metallurgy.

As a deoxidizer, it ensures the integrity and strength of steel.

As an inoculant, it provides the ductility and machinability to cast iron. As a reducing agent, it even helps produce other essential metals like magnesium.

The future of ferrosilicon is intrinsically linked to the future of the global steel and manufacturing sectors.

As industries push for higher-quality materials and more efficient processes, the demand for specific, high-purity grades of ferrosilicon will continue to evolve.

Its role as a foundational, enabling material is secure, cementing its status as a quiet but powerful pillar of modern industrial society.
